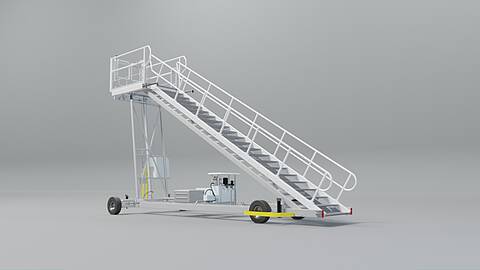

Service step WT 22.001-H-P-FF
The service step WT 22.001-H-P-FF has a hydraulic drive and an electro-hydraulic height adjustment of the platform.
Technical data
Dimensions:
| Total length (drawbar at top) | 7950 mm |
| Total length (drawbar below) | 8700 mm |
| Width | 2800 mm |
| Total height min. | 5300 mm |
| Total height max. | 7820 mm |
Platform:
| Width | 1280 mm |
| Length | 1800 mm |
| minimum platform height | 4370 mm |
| maximum platform height | 5480 mm |
Performance:
| max. driving speed | 25 km/h |
| max. wind speed | 40 kN |
| Operating voltage | 24 V |
| Charging voltage primary/secondary | 230 V/24 V |
Weight specifications:
| Total weight | approx. 2600 kg |
| max. permissible payload | 300 kg/m² |
